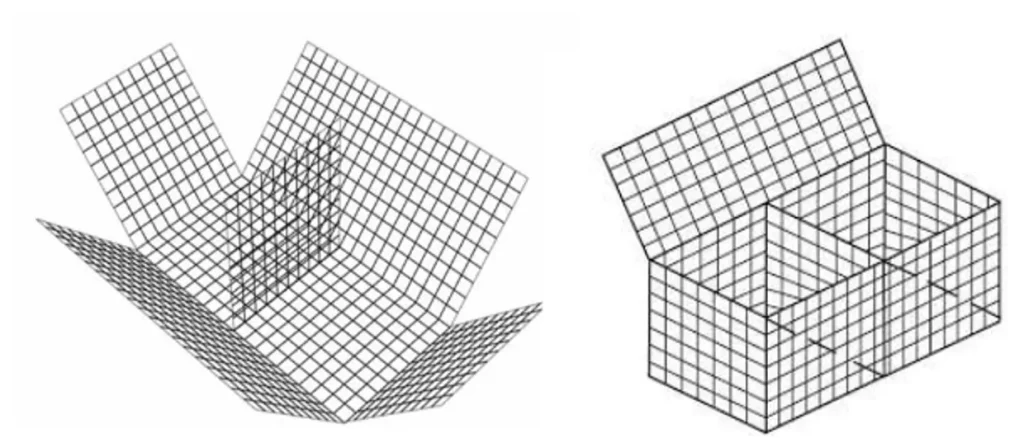

PRO-TEC GABIONS™ WELDED WIRE MESH GABIONs
Our PRO-TEC GABIONS™ are pre-engineered and precision welded wire mesh containers manufactured in USA in accordance with ASTM A974 specifications. They are constructed of flat wire mesh panels joined together with helical spirals to produce rectangular or cube shaped containers. Our standard gabions are constructed of galvanized steel, galvanized and PVC coated or plain "rusty" steel finishes in 11 ga (0.120) and 9 ga (0.148) wire thicknesses with 3" x 3" square mesh openings.
We also offer special order gabions in Stainless Steel - Galfan & Corten Weathered Steel + gabions with smaller mesh openings to accomodite smaller than 3" rocks + custom finishes ... all available on request

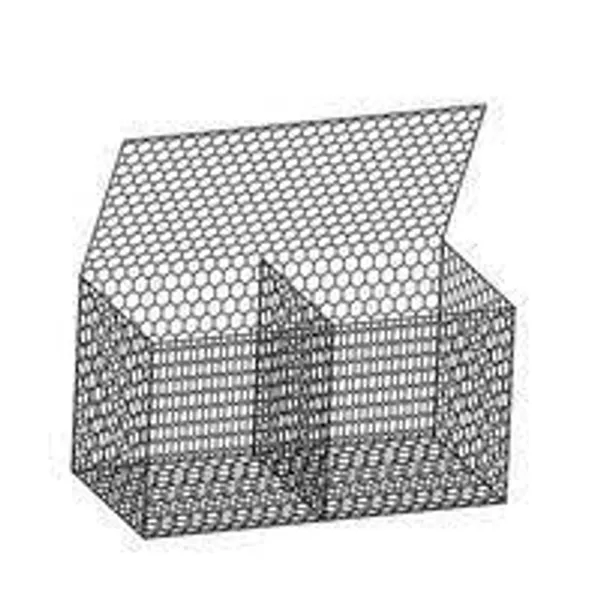

PRO-FLEX GABIONS™ DOUBLE TWISTED WIRE MESH GABIONS
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:600,cg:true)
PRO-FLEX GABIONS™ Now in Stock
Our PRO-FLEX GABIONS™ are durable pre-engineered woven wire mesh containers aka "cages or baskets" manufactured in USA in accordance with ASTM A975 specifications. They are constructed of flat wire mesh panels joined together with tie wire or hog ring fasteners to produce rectangular or cube shaped containers. The wire mesh is fabricated in such a manner as to be non raveling. Defined as the ability to resist pulling apart at any of the twists or connections forming the mesh when a single wire strand in a section of mesh is cut. Our standard gabions are 11 ga (0.120) galvanized and 12 ga (0.106) PVC coated steel finishes with hex shaped mesh openings. Galfan coatings are also availabe
NOW IN STOCK - NEXT DAY SHIPPING !ed.

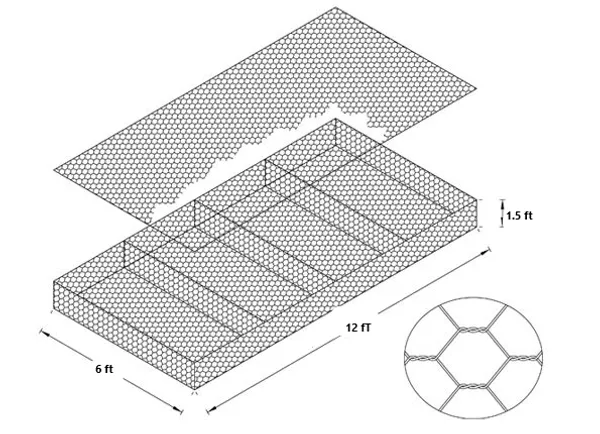

PRO-FLEX GABIONS™ DOUBLE TWISTED WIRE MESH "RENO" MATTRESSES
PRO-FLEX GABIONS™ Now in Stock
Our PRO-FLEX™ "RENO" mattresses are pre-engineered mattress shaped wire mesh containers constructed of heavy galvanized or PVC coated double twisted hexagonal shaped woven steel wire mesh. These "RENO" mattreses are commonly used for erosion control, steep hillside slope stabilization, channel linings, bridge and river bank protection
NOW IN STOCK - NEXT DAY SHIPPING
Shown here is a 8 ft high gabion retaining wall with a smooth front face
gabion RETAINING WALLS

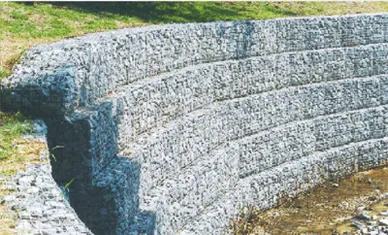

Shown here is a multi course gabion retaining wall with curved face

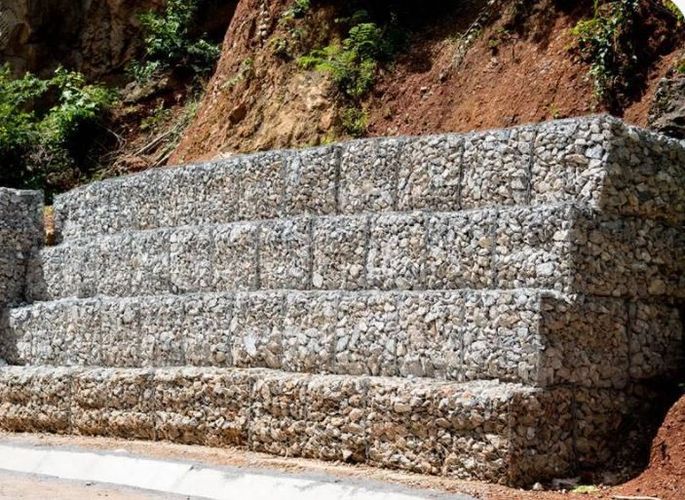

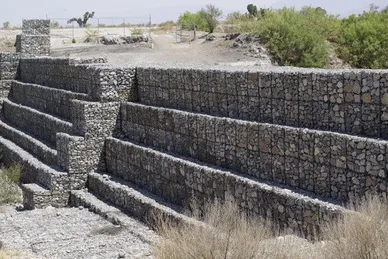

Shown here is a multi-step gabion retaining wall

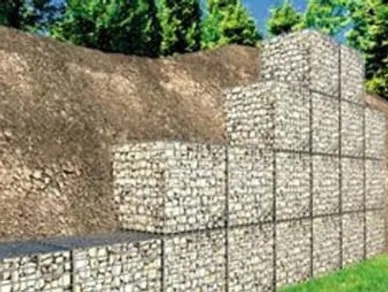

Shown here is a gabion retaining wall with decorator rocks
Shown here is a residential landscape gabion retaining wall with grass covered top surface

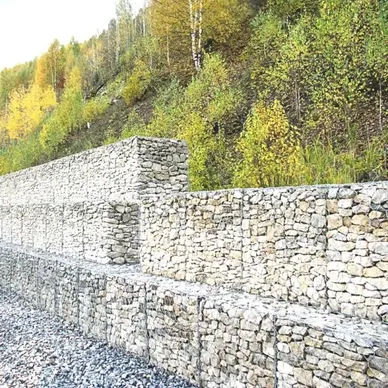

Shown here is a gabion retaining wall providing protection of a steep slope

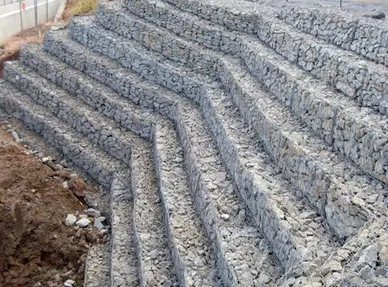

Multi lever installation of gabion retaining wall
STEEP SLOPE PROTECTION

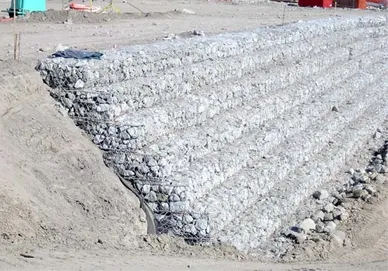

Example of a gabion steep slope retaining wall

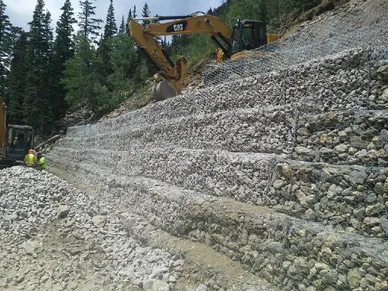

Pro-Flex gabions being installed on a steep slope in Rocky Mountains

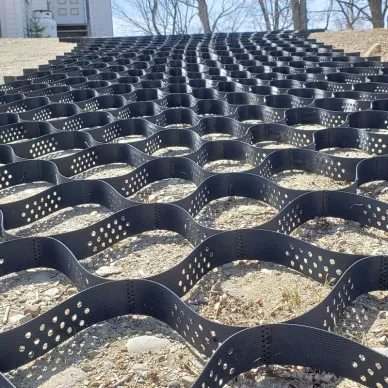

Close up photo of a typical geo-cell panel
geo-cell slope protection

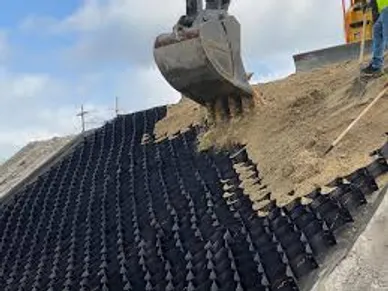

Excavator filling geo-cells with sand on a steep slope
Workers shown stretching out geo-cell panels on steep slope

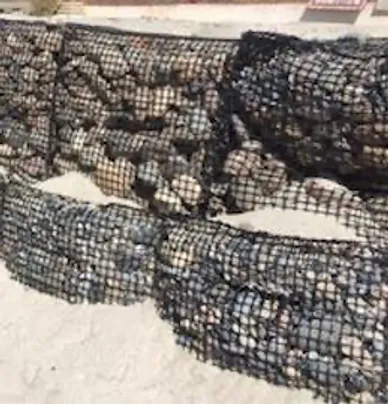

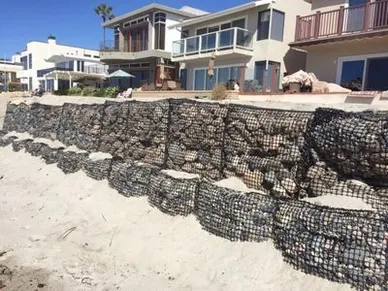

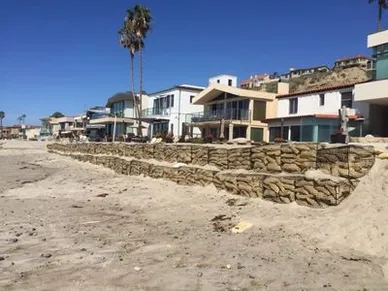

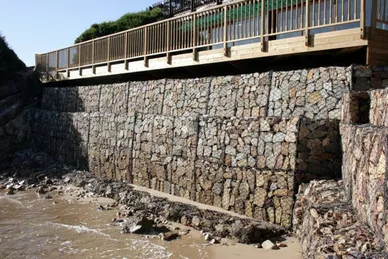

SEA GUARD™ Marine GabionS
"THEY WILL LAST A LIFETIME IN SALT WATER"
Our SEA GUARD™ Marine Gabion baskets offer the best shoreline protection with maximum resistance to corrosive salt water.
These gabions are constructed of synthetic poly- mesh or type 316L stainless steel panels joined together to form rectangular of cube shaped modules.
SEA GUARD™ Marine Gabions are durable and 100% resistant to salt water corrosion
"THEY WILL LAST A LIFETIME IN SALT WATER"

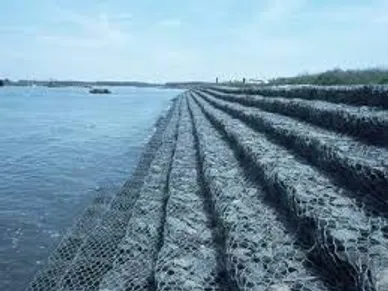

Our SEA GUARD™ Marine Mattresses are mattress shaped gabions constructed of a durable polymeric grid material joined together to form low profile (12" to 24"deep) mattress shaped modules
When filled with rocks or other durable materials, they become a flexible layer able to conform to beach irregularities and a porous barrier to absorb ocean wave energy.
SEA GUARD™ Marine Gabions are durable and 100% resistant to salt water corrosion
.
SEA GUARD™ Marine Gabions
.
.
.
.
.
